Project Examples

A look at real parts machined at Edgeworks — from custom-threaded turned fittings to reverse-engineered replacement components. More projects will be added here over time.

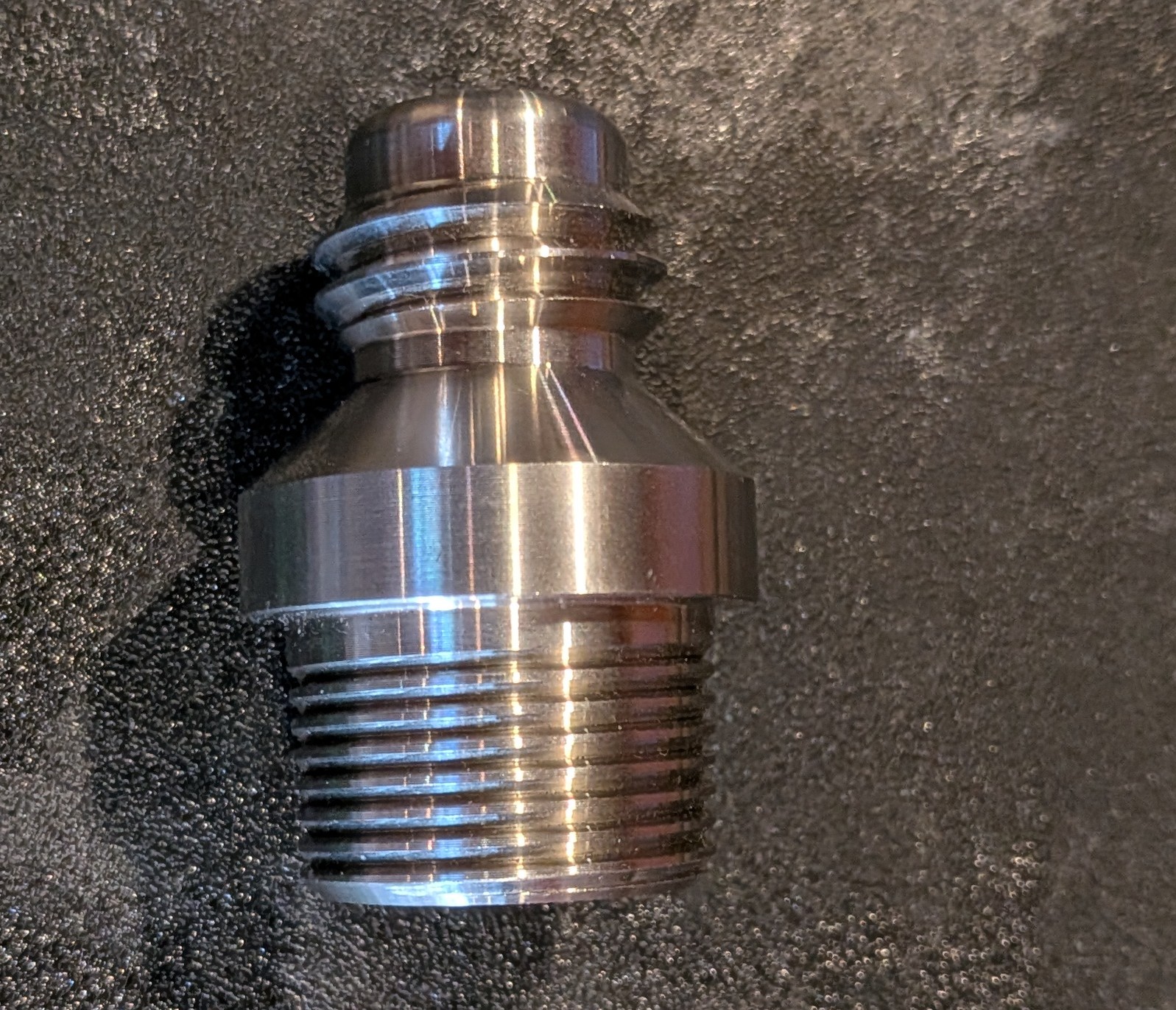

Custom-Threaded Stainless Fluid Fitting

Custom-Threaded Stainless Fluid Fitting

A fluid fitting designed with a custom thread form and turned from stainless steel. Run as a small production batch of 20, with attention to consistent threads, clean sealing surfaces, and a smooth finish across every part.

Material
Stainless steel
Process
CNC turning
Challenge
Custom thread form and clean sealing faces held consistent across a short production run.
Result
A batch of 20 turned stainless fittings made to spec with a polished, repeatable finish.

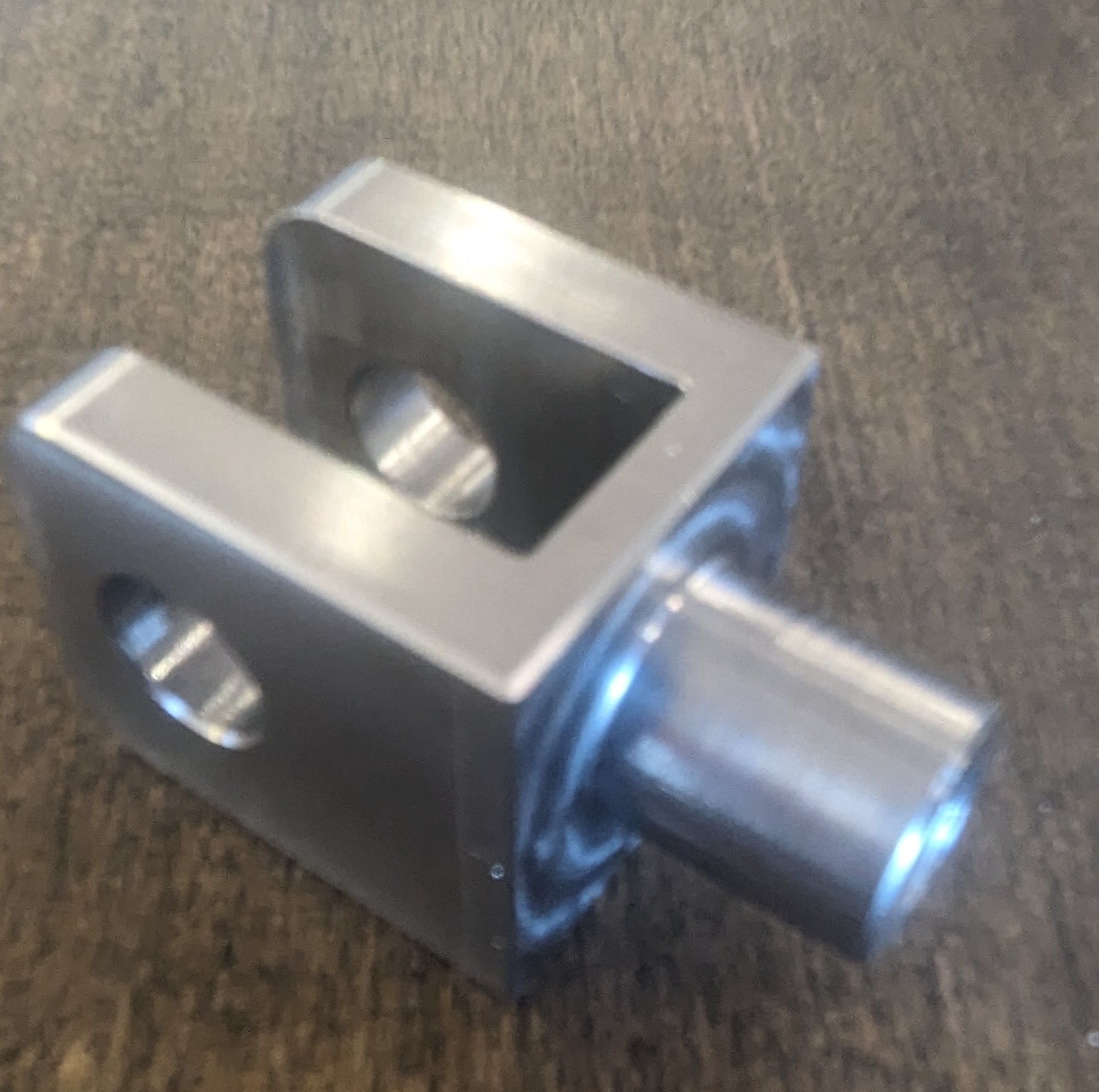

Reverse-Engineered Aluminum Joystick Linkage

Reverse-Engineered Aluminum Joystick Linkage

A joystick linkage fitting for a tractor, reverse engineered from an existing part and milled from aluminum. With no drawing to work from, the geometry was measured and modeled first, then machined to match the original so it fit the existing controls.

Material
Aluminum
Process
Reverse engineering and CNC milling
Challenge
No drawing available — the part had to be recreated from an existing component to get the fit and geometry right.
Result
A milled aluminum linkage that matched the original and dropped straight into the tractor's controls.

Customer-sensitive details are omitted. Project examples may be simplified or representative.
